M20 Waterproof Cable Gland , Metal Brass Cable Connector With 6 - 12mm Dia

YUEQING HONGXIANG CONNECTOR MANUFACTURING CO.,LTD.
Contact Now

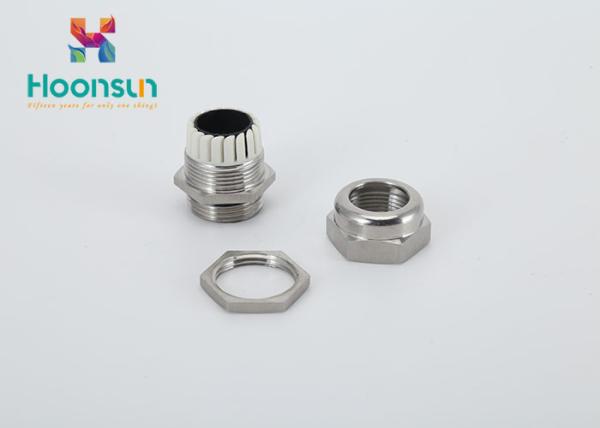

M20 Waterproof Cable Gland , Metal Brass Cable Connector With 6 - 12mm Dia

Brand Name : Hoonsun

Model Number : HX-NPM20

Certification : CE,ROHS,REACH

Place of Origin : Zhejiang,China

MOQ : 50

Price : $0.5/pc

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 30000pcs/day

Delivery Time : 5-20days

item : HX-NPM20

Metal : silver type

Range : 6-12mm

Temp : static state: -40℃ to 100℃

Protection : acid resistance

Seal : NBR,Silicone rubber

Contact Now

M20 Waterproof Metal Brass Cable Connector With 6-12mm Dia.

Specification

Item: M20*1.5

Range: 6-12mm

Thread length: 8mm

Thread O.D.: 20.0mm

Joint length: 21mm

Spanner size: 22mm

Code: HX-NPM20

Detail

Material: nickel-plated brass

Claw: PA(Nylon), UL94-V2

Hermetic seal: NBR, Silicone rubber

O-Ring: NBR, Silicone rubber

Protection degree: IP68-10bar

Temp: static state -40℃ to 100℃

Authentication: CE, RoHS, REACH

Product performance: waterproof, dustproof and corrosion resistance. The diameter of the clamping hose is large and the tensile strength is strong.

Under the condition of reasonable use of products, the waterproof level can reach IP68.

This product can be waterproof, dustproof, corrosion resistant, high hardness, and can work in damp, salt / acid / alkaline environment.

Uses: to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable;

it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry,

the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy.

Other Items

Item Range
mm
GL
mm
Thread O.D.
mm
H
Joint Length
mm
Spanner size
mm
Code
M8×1 2-5 5 8.0 13.5 12 HX-NPM8
M10×1 3-6.5 6.5 10.0 17 14 HX-NPM10
M12×1.5 3-6.5 6.5 12.0 17 14 HX-NPM12
M14×1.5 4-8 8 14.0 18 17 HX-NPM14
M14×1.5 5-10 8 14.0 20 20/17 HX-NPM14
M16×1.5 4-8 8 16.0 19 18 HX-NPM16
M18×1.5 5-10 8 18.0 20 20 HX-NPM18
M20×1.5 6-12 8 20.0 21 22 HX-NPM20
M22×1.5 10-14 8 22.0 22 24 HX-NPM22
M24×1.5 10-14 9 24.0 22 24/27 HX-NPM24
M25×1.5 10-14 9 25.0 22 24/27 HX-NPM25-14
M25×1.5 11-16 9 25.0 25 27 HX-NPM25-16
M25×1.5 13-18 9 25.0 27 30/27 HX-NPM25-18
M27×1.5 13-18 9 27.0 27 30 HX-NPM27
M30×2 13-18 9 30.0 27 30/32 HX-NPM30
M32×1.5 15-22 10 32.0 29 35 HX-NPM32
M33×2 15-22 10 33.0 29 35/36 HX-NPM33
M36×1.5 18-25 10 36.0 31 40 HX-NPM36
M37×1.5 18-25 10 37.0 31 40 HX-NPM37
M40×1.5 18-25 11 40.0 31 40/45 HX-NPM40-25
M40×1.5 22-30 11 40.0 35 45 HX-NPM40-30
M47×1.5 25-33 11 47.0 37 50 HX-NPM47
M50×1.5 32-38 13 50.0 37 57/55 HX-NPM50
M60×1.5 37-44 14 60.0 38 64 HX-NPM60
M63×1.5 37-44 14 63.0 38 64/68 HX-NPM63

FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.

Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,

balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed.

We will try to make the best assistant to let you maximum satisfaction.
