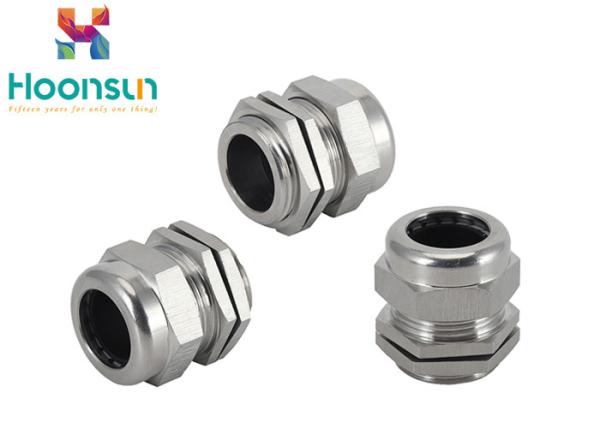

G1 / 4 Dustproof Waterproof Metal Stainless Steel Acid Resistance Cable Gland
product details
1. The thread size of cable cover is G-type thread of common Germany.
2. The main material is high quality stainless steel SS304/316L, with high hardness, good corrosion resistance and no harsh working environment.
3. The clamping parts are nylon plastic PA66 and UL94-V2. It has good tensile properties and can effectively protect cables.
4. O-rings and seals are NBR and silicone rubber. The waterproof performance reaches IP68, which prevents the cable from rusting.
5. Through CE certification and RoHS certification, it is non-toxic, non-polluting and environmentally friendly.
Product certification
European CE, ROHS,REACH certification
- precision thread, tightly connected
- seal rubber ring, effective seal
- protection degree up to IP68
Special clamping claws and clamping rings are sealed and fastened together with the tightening nut, thus clamping the cable in a large range.Strong tensile strength, waterproof, dustproof, salt - resistant, acid and alkali - resistant, alcohol, oil, ester and other common solvents.
Application occasions: offshore operations, mine machinery, chemical equipment and other harsh working occasions.
|
Item
|
Range
|
GL
|
H
|
Thread O.D.
AG mm
|
Spanner size
|
Code
|
| G1/4 |
3-6.5 |
7 |
19 |
13.1 |
14 |
HX-SSG1/4 |
| G3/8 |
4-8 |
8 |
21 |
16.6 |
17/20 |
HX-SSG3/8 |
| G1/2 |
6-12 |
8 |
22 |
20.9 |
22/23 |
HX-SSG1/2 |
| G3/4 |
13-18 |
9 |
25 |
26.4 |
30 |
HX-SSG3/4 |
| G1 |
18-25 |
10 |
29 |
32.2 |
40 |
HX-SSG1/2 |
| G1-1/4 |
25-33 |
11 |
35 |
41.9 |
50 |
HX-SSG1-1/4 |
| G1-1/2 |
32-38 |
12 |
37 |
47.8 |
57/55 |
HX-SSG1-1/2 |
| G2 |
37-44 |
14 |
38 |
59.6 |
65 |
HX-SSPG2 |
| G2-1/2 |
42-52 |
16 |
42 |
75.1 |
78 |
HX-SSG2-1/2 |
| G3 |
65-70 |
18 |
45 |
88 |
94 |
HX-SSG3 |
Characteristics
1) strong antioxidation, no rust
2) do not release harmful substances, pollution-free
3) the use of stainless steel, high hardness
4) the grade of waterproof is IP68
5) a temperature of 120 degrees Celsius in a short period of time in a static environment.
6) product performance: waterproof, dust-proof, corrosion resistant and non polluting. It has the characteristics of strong anti stamping, isolation and explosion-proof.
The products are suitable for cable connection of circuit, electric box and transportation equipment, industrial machinery and equipment, wind energy industry, solar energy industry and so on.
The installation is very simple. Just insert the cable through the assembled gland and tighten the compression nut until the cable is fixed.
